Replace Geometries For Faster Cutting

Replace Geometries For Faster Cutting

1,148 Intersecting Line Segments Replaced With 178 Tangent Arcs

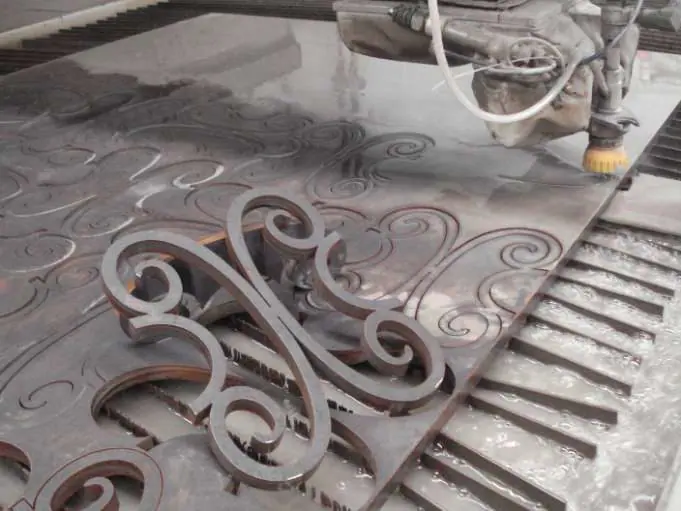

A high-precision waterjet cutting machine is meticulously carving intricate scrollwork patterns into a large metal sheet.

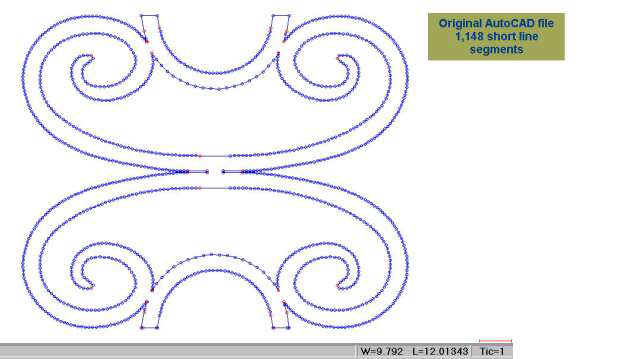

The CAD file for the finished part in the picture below consisted of 1,148 consecutive short line segments. PEP Technology’s CAD Converter automatically replaced every line segment with a tangent arc segment and developed the finished cutter path in 2 minutes.

PEP Technology’s Automation dramatically:

  • Reduced the time it took to create the finished cutter path.
  • Reduced the machine code size per part to 1/15th it’s original size.
  • Reduced the machine code size to cut the entire nest to 1.
  • Reduced the cutting time by increase the speed of the cut.
  • Improved the cut quality of the parts

Highlights of the Cad Converter Replace Software

CAD file had thousands of short geometries.

Issues: Jagged part edges, huge code size, slow cutting as machine control slows down at each intersection.

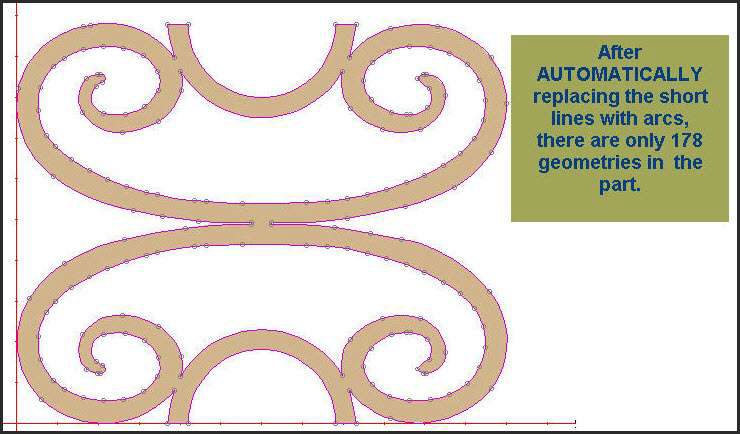

PEP’s REPLACE SOFTWARE converted LINES to ARCS automatically!
